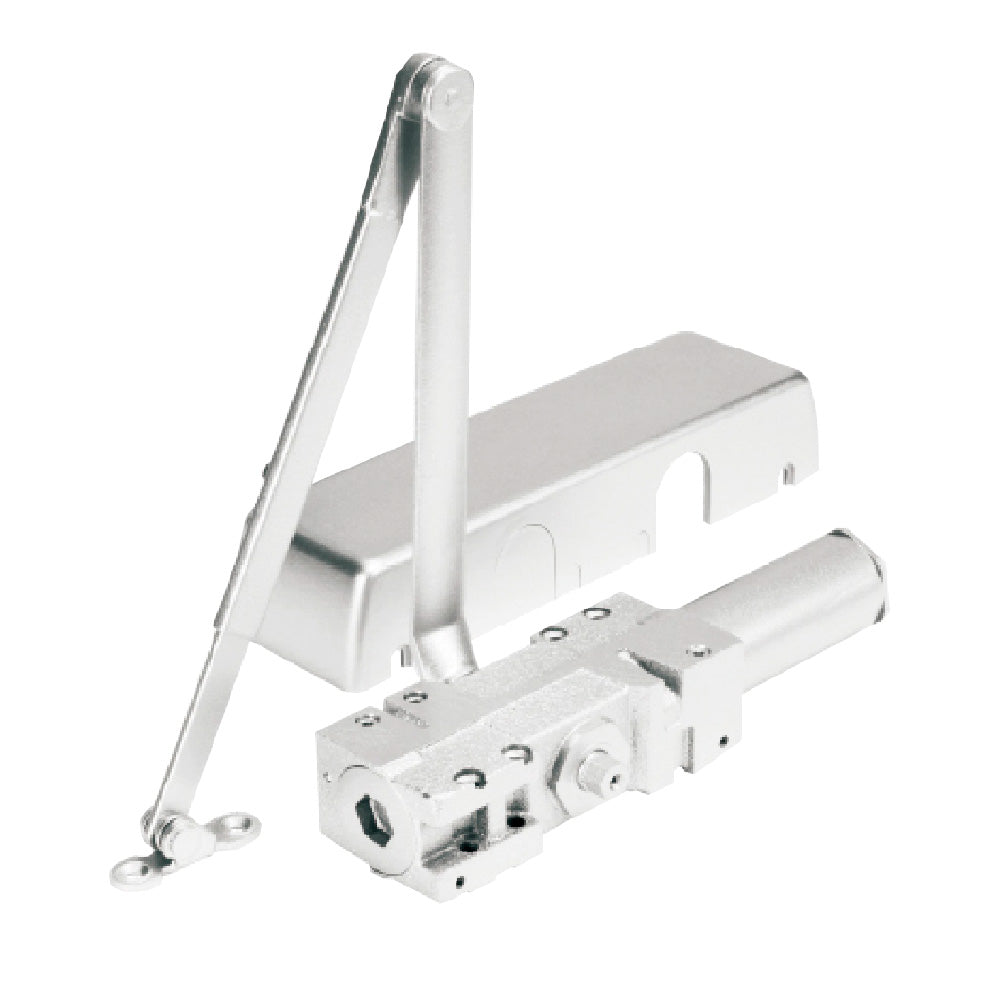

Series FDC 401 Door Closer – Smooth & Reliable Closing for Commercial Doors

Product Overview

The Series FDC 401 Door Closer provides smooth, controlled door operation and is built for heavy-duty commercial use. Designed in a classic American style, this closer is Grade 1 certified, UL/ULC listed, and available with a 3-hour fire rating, making it a top choice for high-traffic commercial and fire-rated doors.

It supports door widths up to 1400 mm and weights between 15–150 kg, offering flexibility for a wide range of applications. The FDC 401 features two-speed adjustable closing control, backcheck function, and optional delay action and hold-open arm, ensuring precise performance and improved safety.

Built to last, this closer has successfully passed a 2,000,000-cycle durability test, guaranteeing dependable operation in the most demanding environments.

Key Features

• Grade 1 heavy-duty construction, ideal for commercial and industrial doors

• UL/ULC listed with 3-hour fire-rated option for building code compliance

• Supports doors up to 1400 mm wide and 15–150 kg in weight

• Two-speed closing adjustment for controlled, reliable performance

• Backcheck function included, with optional delay action and hold-open sliding arm

• 180° maximum opening angle for full accessibility

• Compatible with left- and right-hand doors

• Durability tested for over 2,000,000 cycles

• Available finishes: Silver, Gold, Brown (8014), White (9016), Bronze (8080), Beige (1015), Chocolate (1019), Black (9005), plus custom colors by request

Technical Specifications

• Main Body Dimensions: 280 mm (L) x 70 mm (W) x 51 mm (H)

• Door Width (Max): 1400 mm

• Door Weight Range: 15–150 kg

• Weight: 5.42 kg

• Closing Speeds:

  • Speed 1: Max open angle → 10°

  • Speed 2: 10° → fully closed

• Operating Temperature: -30ºC to 60ºC

Ideal Applications

• Commercial buildings and offices

• Schools and universities

• Healthcare and institutional facilities

• Fire-rated and high-traffic doors
