Series FDC 410 Door Closer – Reliable, Smooth Closing for Commercial & Industrial Doors

Product Overview

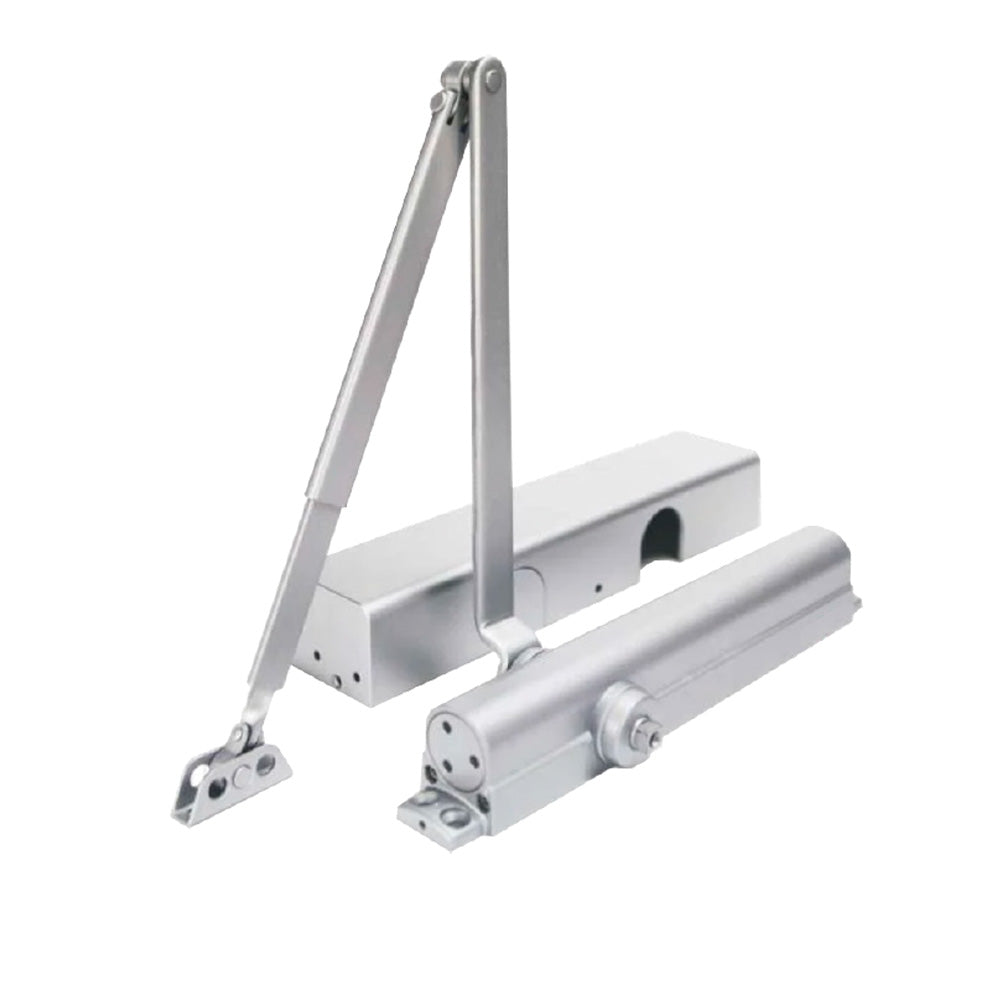

The Series FDC 410 Door Closer delivers smooth, controlled closing for heavy-duty commercial and industrial applications. Designed in a robust American style, this closer is Grade 1 certified, UL/ULC listed, and available with a 3-hour fire rating, making it a perfect choice for high-traffic doors and fire-rated assemblies.

Supporting door widths up to 1400 mm and weights from 15–150 kg, this closer is versatile and built to last. It includes two-stage adjustable closing speeds, backcheck function, and optional delay action and hold-open features, allowing precise control and improved safety.

Tested to exceed 2,000,000 operating cycles, the FDC 410 guarantees long-term durability even in demanding commercial environments.

Key Features

• Heavy-duty Grade 1 construction, ideal for high-traffic commercial doors

• UL/ULC listed and 3-hour fire-rated option for safety compliance

• Two-speed closing adjustment for smooth, controlled door operation

• Supports door widths up to 1400 mm and weights 15–150 kg

• Backcheck function included, with optional delay action and hold-open arm

• 180° maximum opening angle for full accessibility

• Suitable for both left- and right-hand doors

• Durability tested for 2,000,000+ cycles for long-lasting performance

• Available in multiple finishes: Silver, Gold, Brown (8014), White (9016), Bronze (8080), Beige (1015), Chocolate (1019), Black (9005), and custom colors

Technical Specifications

• Main Body Dimensions: 325 mm (L) x 48 mm (W) x 51 mm (H)

• Door Width (Max): 1400 mm

• Door Weight Range: 15–150 kg

• Weight: 5.42 kg

• Closing Speeds:

  • Speed 1: Max open angle → 10°

  • Speed 2: 10° → fully closed

• Operating Temperature: -30ºC to 60ºC

Ideal Applications

• Commercial and industrial buildings

• Schools and universities

• Hospitals and healthcare facilities

• Fire-rated and high-traffic doors

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
