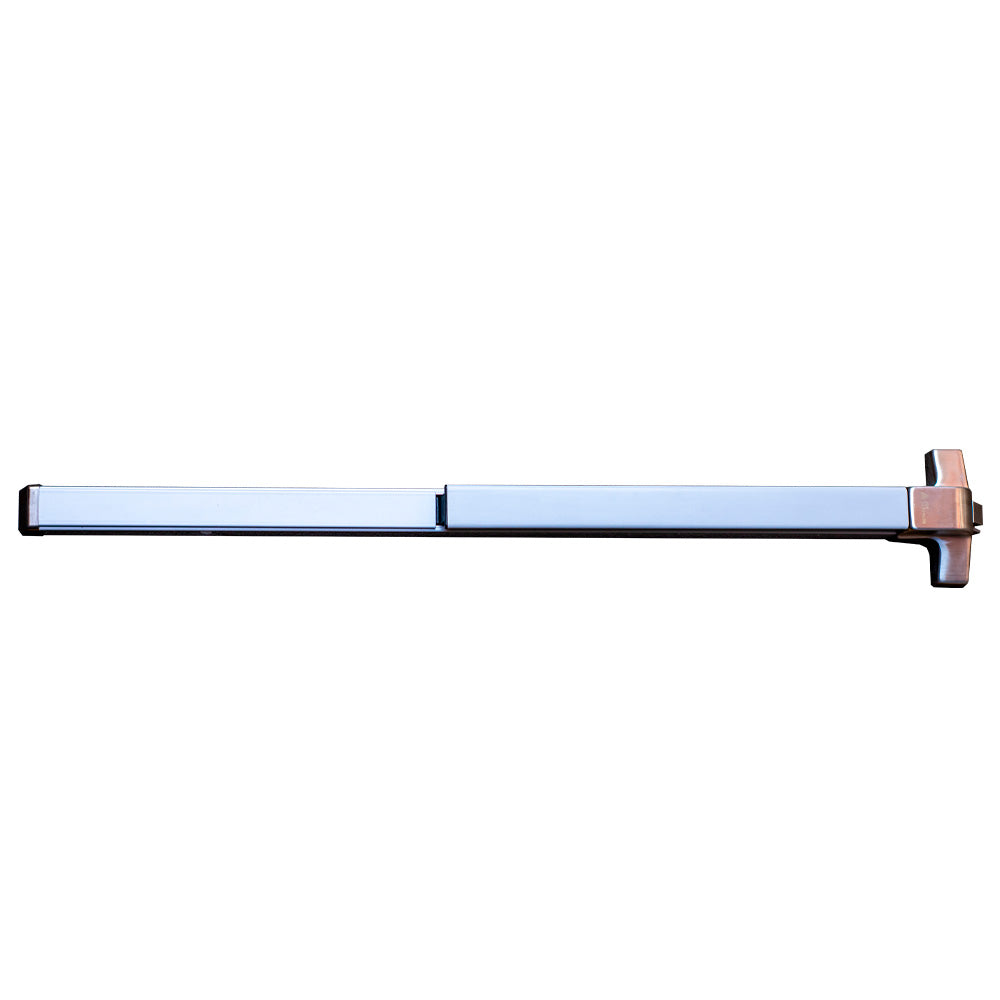

Series FDC 750 / FDC 760 Panic Exit Device – Durable & Code-Compliant Emergency Hardware

Product Overview

The Series FDC 750 and FDC 760 Panic Exit Devices provide reliable emergency egress for commercial, institutional, and industrial applications. Designed to meet Grade 1 standards and UL/ULC listed, these devices are available with a 3-hour fire rating for use on fire-rated doors.

The FDC 750 fits 30” to 36” wide doors with an actual rail length of 32” (cuttable up to 6”), while the FDC 760 fits 31” to 48” wide doors with an actual rail length of 39” (cuttable up to 12”). Both models feature a stainless-steel latch with ⅝” throw, adjustable backset and strike plates, and slotted mounting holes for quick and precise installation.

Tested to perform beyond 1,000,000 operating cycles, these panic devices are built for long-term reliability in high-traffic environments.

Key Features

• Grade 1 panic exit device, UL/ULC listed

• 3-hour fire-rated option available for code compliance

• FDC 750: Fits 30”–36” doors (rail length 32”, cuttable up to 6”)

• FDC 760: Fits 31”–48” doors (rail length 39”, cuttable up to 12”)

• Stainless-steel ⅝” latch throw for secure latching

• Adjustable backset and strike plate with slotted holes for easy installation

• 6-pin solid brass C keyway cylinder (KD standard, can be pinned to 5-pin)

• Compatible with multiple cylinder brands: Arrow, Corbin, Corbin Russwin, Kwikset, Sargent, Schlage, Weiser, Yale, Best (6- or 7-pin IC core)

• Supports keying options: GMK, CMK, MK, KA, KD, IC, 0-bitted

• Accommodates wood or metal doors, 1-¾” thick

• Surface-mounted design for simple installation

• Available finishes: Silver Painted, Stainless Steel

• Lifetime limited warranty

• Tested for 1,000,000+ cycles for proven durability

Specifications

• Door Thickness: 1-¾”

• Door Prep: Surface mounted

• Rail Lengths:

  • FDC 750 – 32” (cuttable up to 6”)

  • FDC 760 – 39” (cuttable up to 12”)

Ideal Applications

• Commercial offices

• Schools and universities

• Healthcare facilities

• Industrial and warehouse doors

• Fire-rated and code-compliant egress doors

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
