Series FDC 753 Panic Exit Device with Vertical Rod – Reliable Emergency Egress Solution

Product Overview

The Series FDC 753 Panic Exit Device with Vertical Rod provides safe, reliable emergency egress for commercial, institutional, and industrial buildings. Built to Grade 1 standards and UL/ULC listed, this panic device ensures compliance with strict fire and life safety codes and is available with a 3-hour fire rating for use on fire-rated doors up to 4’ x 8’.

Featuring top and bottom Pullman latch bolts with stainless-steel ½" throw, the FDC 753 offers secure latching and smooth operation. Its adjustable backset and strike with slotted holes allow for precise installation on wood or metal doors, while the surface-mounted design makes installation quick and efficient.

Tested to perform beyond 1,000,000 cycles, this panic device guarantees long-term durability and dependable operation in high-traffic areas.

Key Features

• Grade 1 heavy-duty panic exit device for reliable life safety compliance

• UL/ULC listed, 3-hour fire-rated option available

• Vertical rod design with top and bottom Pullman latch bolts for secure locking

• Adjustable backset and strike for flexible installation

• 6-pin solid brass C keyway cylinder, keyed different (KD) – other keying options available

• Compatible with multiple cylinder types: Arrow, Corbin, Corbin Russwin, Kwikset, Sargent, Schlage, Weiser, Yale, and Best (6- or 7-pin IC core)

• Supports a wide range of keying options: GMK, CMK, MK, KA, KD, IC, 0-bitted

• Accommodates wood or metal doors, 1-¾” thick

• Surface-mounted for easy installation

• Satin Stainless Steel (US32D) finish for a professional look

• Lifetime limited warranty for peace of mind

• Tested for over 1,000,000 cycles for proven durability

Specifications

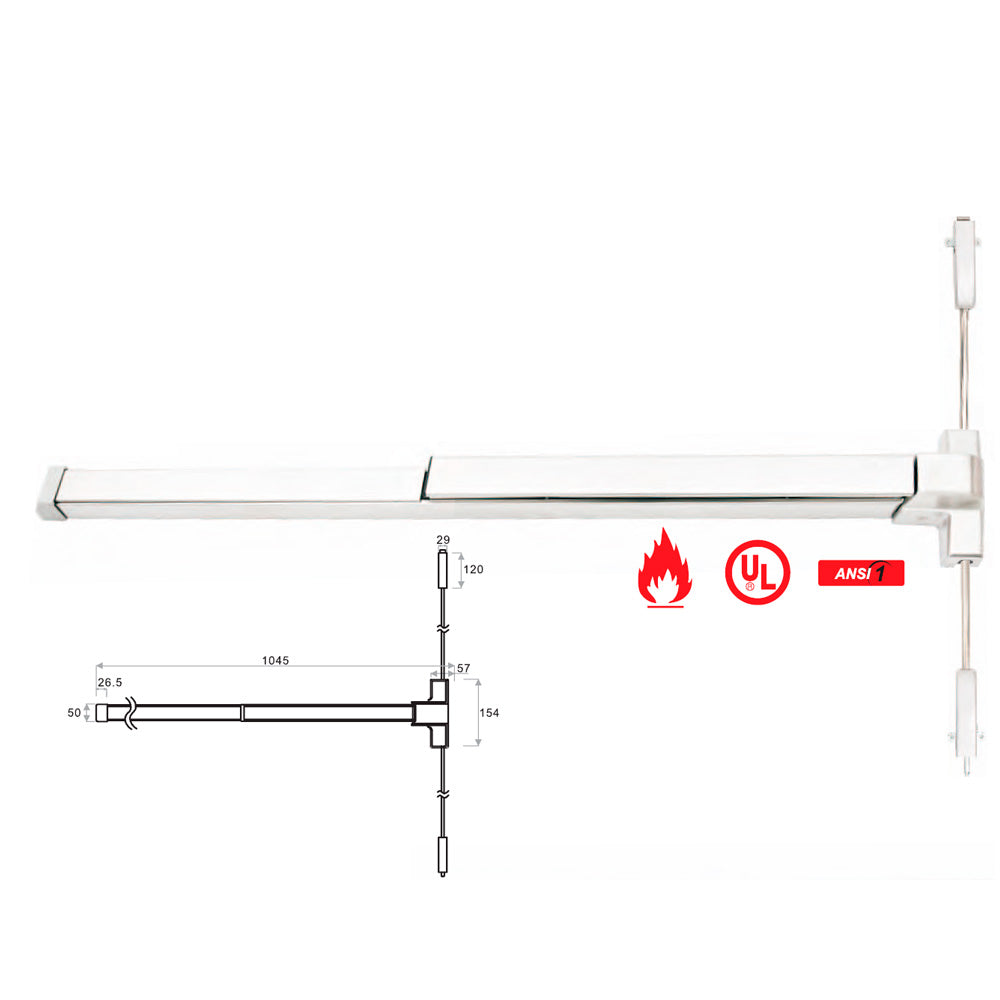

• Rail Length: 1045 mm

• Latch Bolts: Top & bottom Pullman style, stainless steel ½" throw

• Door Thickness: 1-¾”

• Door Prep: Surface-mounted

Ideal Applications

• Schools & universities

• Hospitals & healthcare facilities

• Office buildings

• Industrial and warehouse doors

• Fire-rated doors requiring panic hardware
