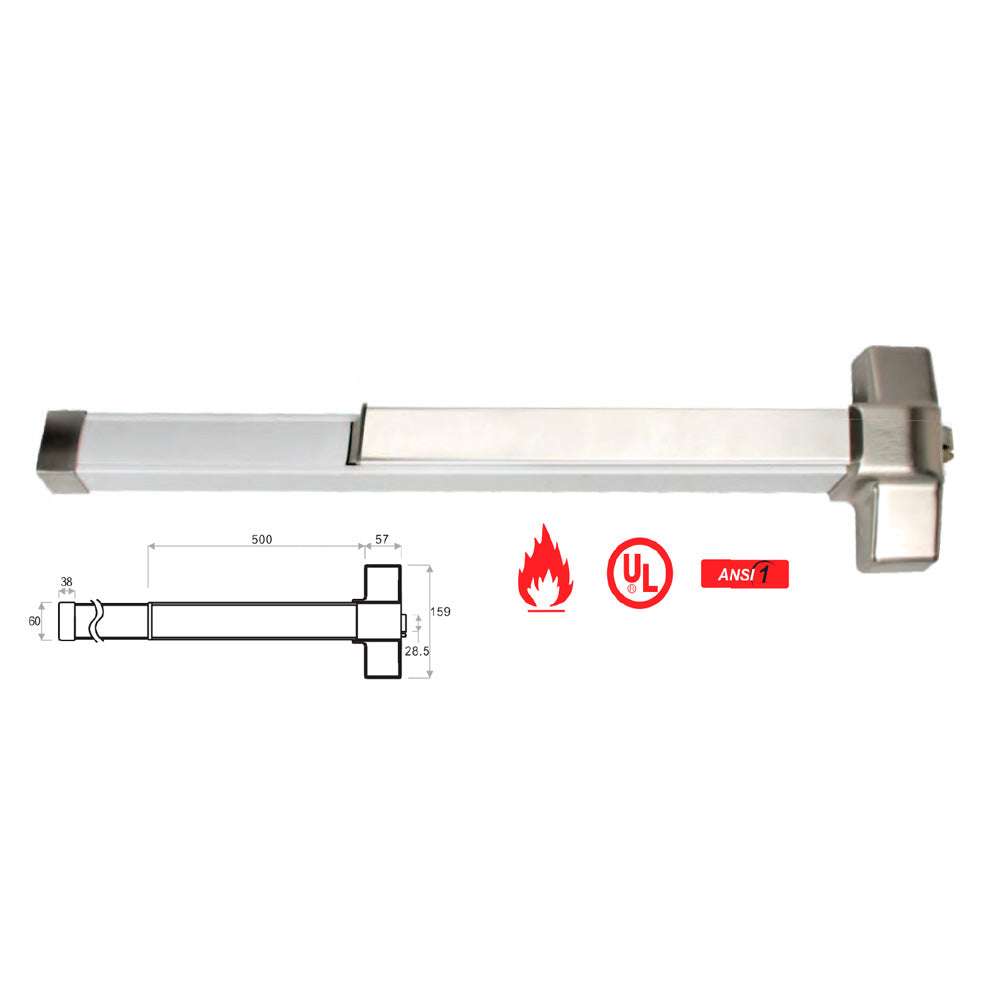

Series FDC 800 / FDC 810 Panic Exit Device – Reliable & Durable Emergency Door Hardware

Product Overview

The Series FDC 800 and FDC 810 Panic Exit Devices are built for safe, efficient emergency egress in commercial, institutional, and industrial buildings. Designed to meet Grade 1 performance standards and UL/ULC listed, these devices are available with a 3-hour fire rating for use on fire-rated doors up to 4’ x 8’.

The FDC 800 fits 28”–36” doors, while the FDC 810 fits 36”–48” doors, providing flexible solutions for multiple door sizes. Both devices feature a stainless-steel latch with ⅝” throw, a 2-¾” backset, and an adjustable strike plate with slotted holes for precise installation.

Tested for over 1,000,000 cycles, these panic devices deliver long-lasting reliability, making them ideal for high-traffic environments where code compliance and durability are critical.

Key Features

• Grade 1 panic exit device, UL/ULC listed

• UL fire-rated for 3 hours, suitable for doors up to 4’ x 8’ (specify when ordering)

• FDC 800: Fits 28”–36” wide doors

• FDC 810: Fits 36”–48” wide doors

• Stainless-steel ⅝” latch throw for secure and smooth operation

• Adjustable strike plate with slotted holes for easy installation

• 6-pin solid brass C keyway cylinder, keyed different (KD) – can be pinned to 5-pin

• Compatible with multiple cylinder types: Arrow, Corbin, Corbin Russwin, Kwikset, Sargent, Schlage, Weiser, Yale, Best (6- or 7-pin IC core)

• Supports multiple keying options: GMK, CMK, MK, KA, KD, IC, 0-bitted

• Accommodates wood or metal doors, 1-¾” thick

• Surface-mounted design for quick installation

• Finish: Satin Stainless Steel (US32D)

• Lifetime limited warranty

• Tested for 1,000,000+ cycles for proven durability

Specifications

• Door Thickness: 1-¾”

• Backset: 2-¾”

• Door Prep: Surface mounted

• Finishes: US32D Satin Stainless Steel

Ideal Applications

• Commercial and office buildings

• Schools and universities

• Hospitals and healthcare facilities

• Industrial and warehouse doors

• Fire-rated doors requiring panic hardware
