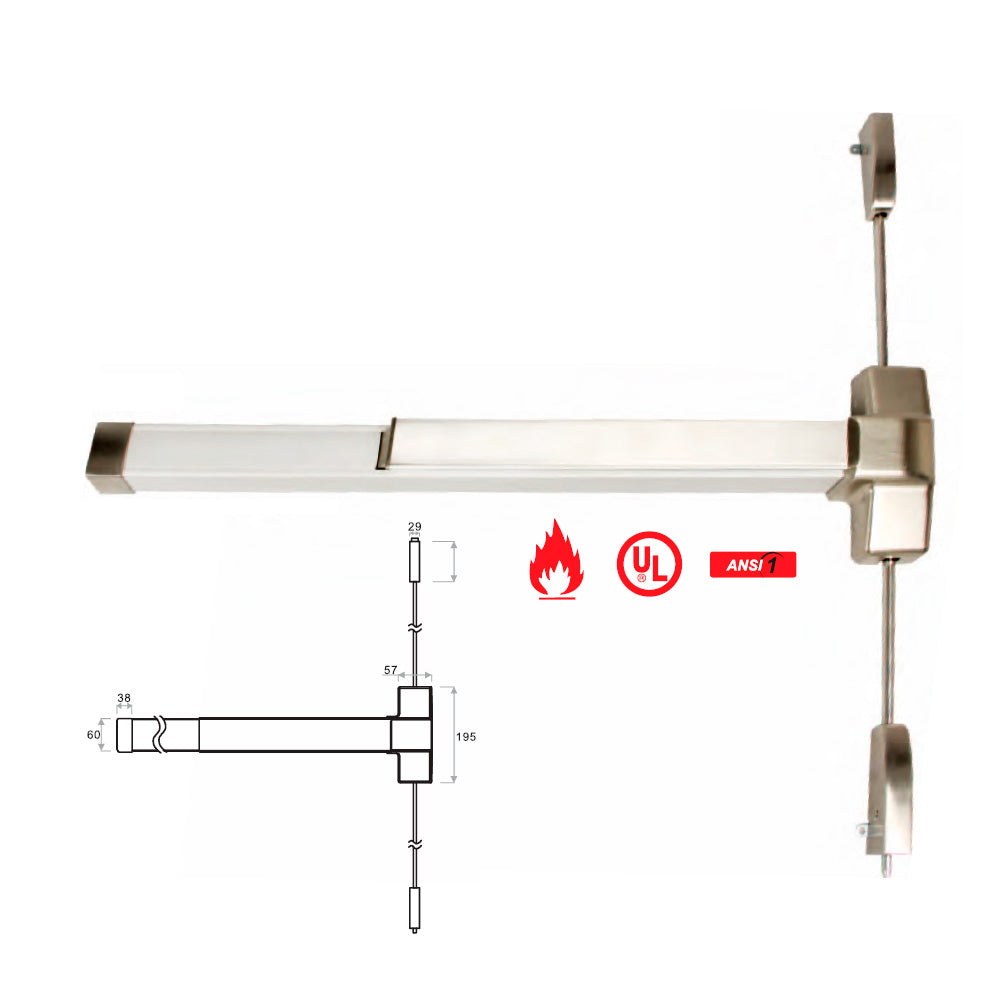

Series FDC 820/FDC 830 Panic Exit Device Vertical Rod

Product Overview

The Series FDC 820 and FDC 830 Vertical Rod Panic Exit Devices are designed to deliver safe, code-compliant emergency egress for commercial, institutional, and industrial facilities. Built to Grade 1 standards and UL/ULC listed, these devices are available with a 3-hour fire rating for use on fire-rated doors.

The FDC 820 is ideal for 28” to 36” wide doors, while the FDC 830 fits 36” to 48” doors, making this series versatile for multiple door sizes. Each device features Pullman latch bolts at the top and bottom for secure locking, an adjustable strike with slotted holes for precision fit, and a 2-¾” backset.

Tested to over 1,000,000 cycles, the FDC 820/830 series is engineered for high-traffic environments where durability, reliability, and safety are non-negotiable.

Key Features

• Grade 1 vertical rod panic device, UL/ULC listed

• 3-hour fire-rated option available for fire-rated doors

• FDC 820: Fits 28”–36” wide doors

• FDC 830: Fits 36”–48” wide doors

• Top and bottom Pullman latch bolts for secure latching

• Adjustable strike with slotted holes for easy, precise installation

• C keyway 6-pin solid brass cylinder, keyed different (KD) – can be pinned to 5-pin

• Compatible with multiple cylinder brands: Arrow, Corbin, Corbin Russwin, Kwikset, Sargent, Schlage, Weiser, Yale, and Best (6- or 7-pin IC core)

• Supports keying options: GMK, CMK, MK, KA, KD, IC, 0-bitted

• Accommodates wood or metal doors, 1-¾” thick

• Surface-mounted design for quick installation

• Available finishes: Silver Painted, Satin Stainless Steel (US32D)

• Lifetime limited warranty

• Tested for 1,000,000+ cycles for proven durability

Specifications

• Door Thickness: 1-¾”

• Backset: 2-¾”

• Door Prep: Surface mounted

• Latch: Pullman latch bolts (top & bottom)

Ideal Applications

• Schools and universities

• Hospitals and healthcare facilities

• Industrial and warehouse doors

• Office buildings

• Fire-rated doors requiring panic hardware
