Series FDC100 Cylindrical Lock – Grade 2 Commercial Door Hardware

Product Overview

The Series FDC100 Cylindrical Lock is a Grade 2, UL/ULC listed commercial lockset built for security, reliability, and durability in office, retail, and institutional settings. Available with a 3-hour fire rating, this lock is designed to meet rigorous safety and performance standards for commercial doors.

Featuring a ½” solid brass throw latch (UL listed and reversible for RH or LH applications) and a 6-pin solid brass “C” keyway cylinder, the FDC100 provides smooth operation and superior resistance to tampering. It supports a wide variety of keyways and can accept high-security cylinders from Medeco, Assa, Kaba, and Cal-Royal.

With a lifetime limited warranty and tested to withstand over 400,000 operating cycles, this lockset is engineered to perform in high-traffic environments while offering versatile function options for different security needs.

Key Features

• Grade 2 cylindrical lockset, UL/ULC listed

• 3-hour fire-rated option available for code compliance

• ½” solid brass latch throw, reversible for right- or left-hand doors

• Backset: 2-¾”

• ASA standard strike included; “T” and full lip strikes available upon request

• 6-pin solid brass “C” keyway cylinder (supports Schlage, Russwin, Corbin, Sargent, Yale, Kwikset, and more)

• Accepts high-security cylinders from Medeco, Assa, Kaba, Cal-Royal

• Accommodates wood or metal doors, 1-¾” thick

• Door Prep: PREP 161

• Finish: Stainless Steel

• Tested over 400,000 cycles for long-lasting reliability

• Lifetime limited warranty

Available Functions

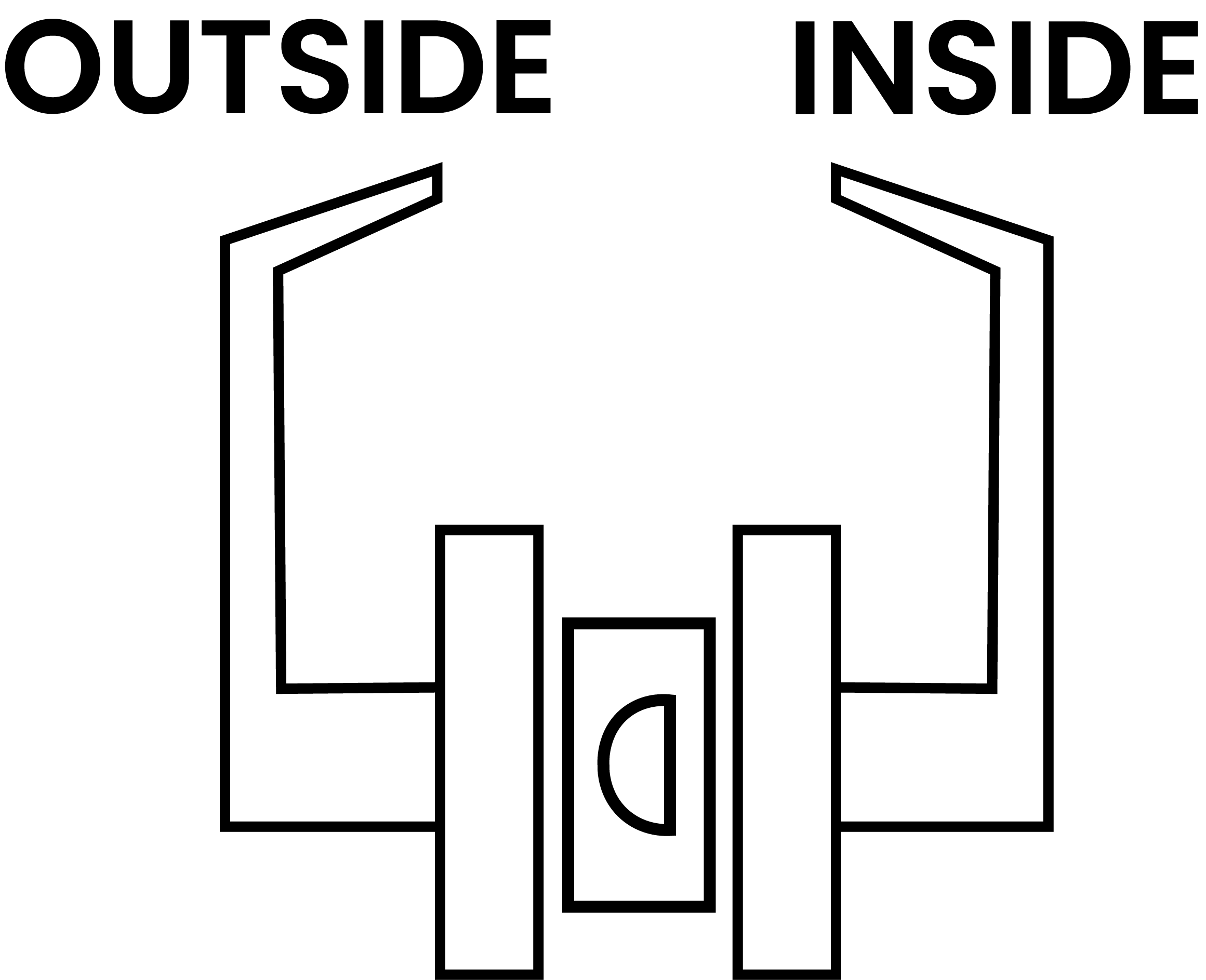

• Passage: For doors that do not require locking

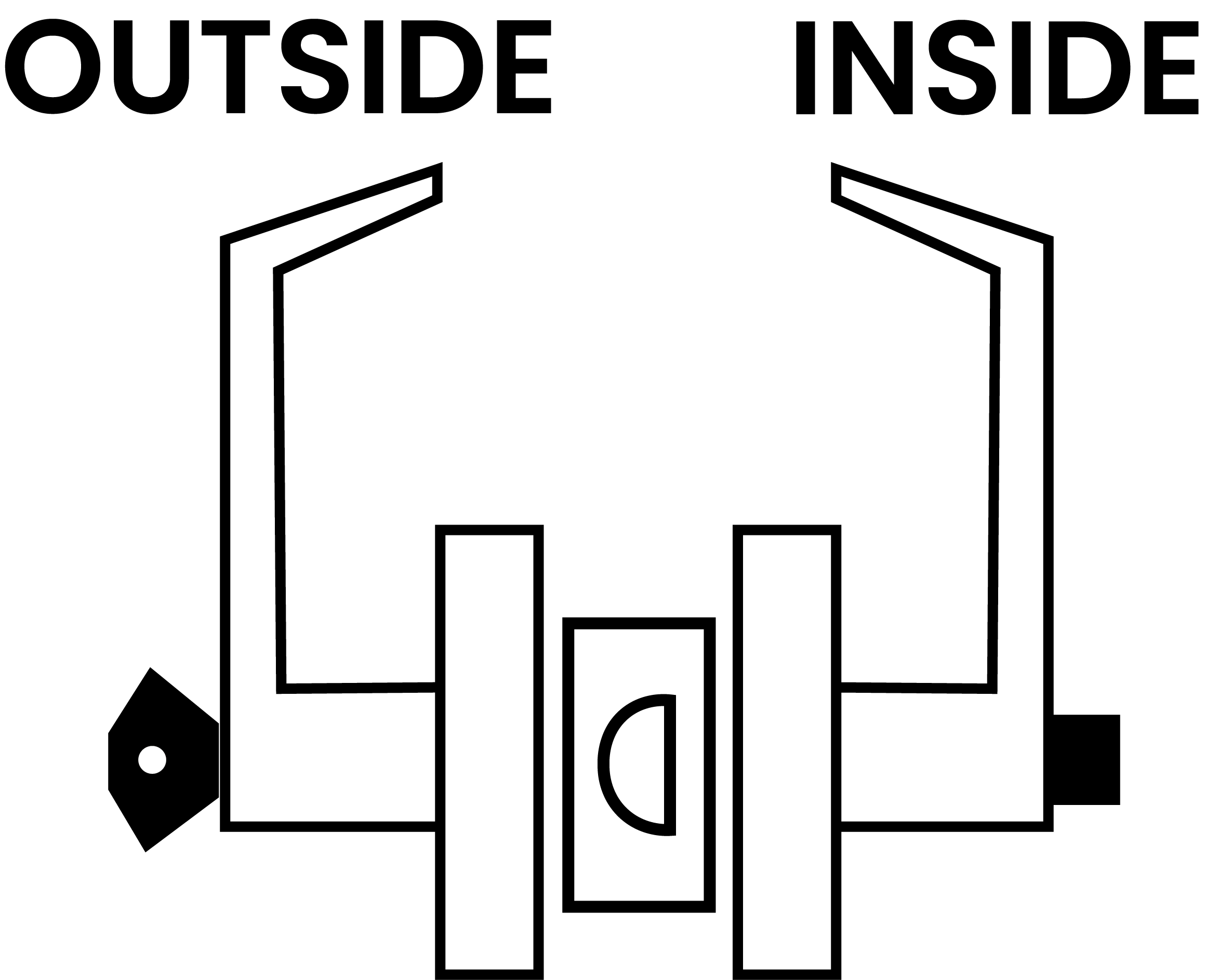

• Entrance: Key-operated from outside, button on inside for passage

• Privacy: Latch bolt operable from either side; emergency key override outside

• Classroom: Key locks/unlocks outside lever; inside lever always free

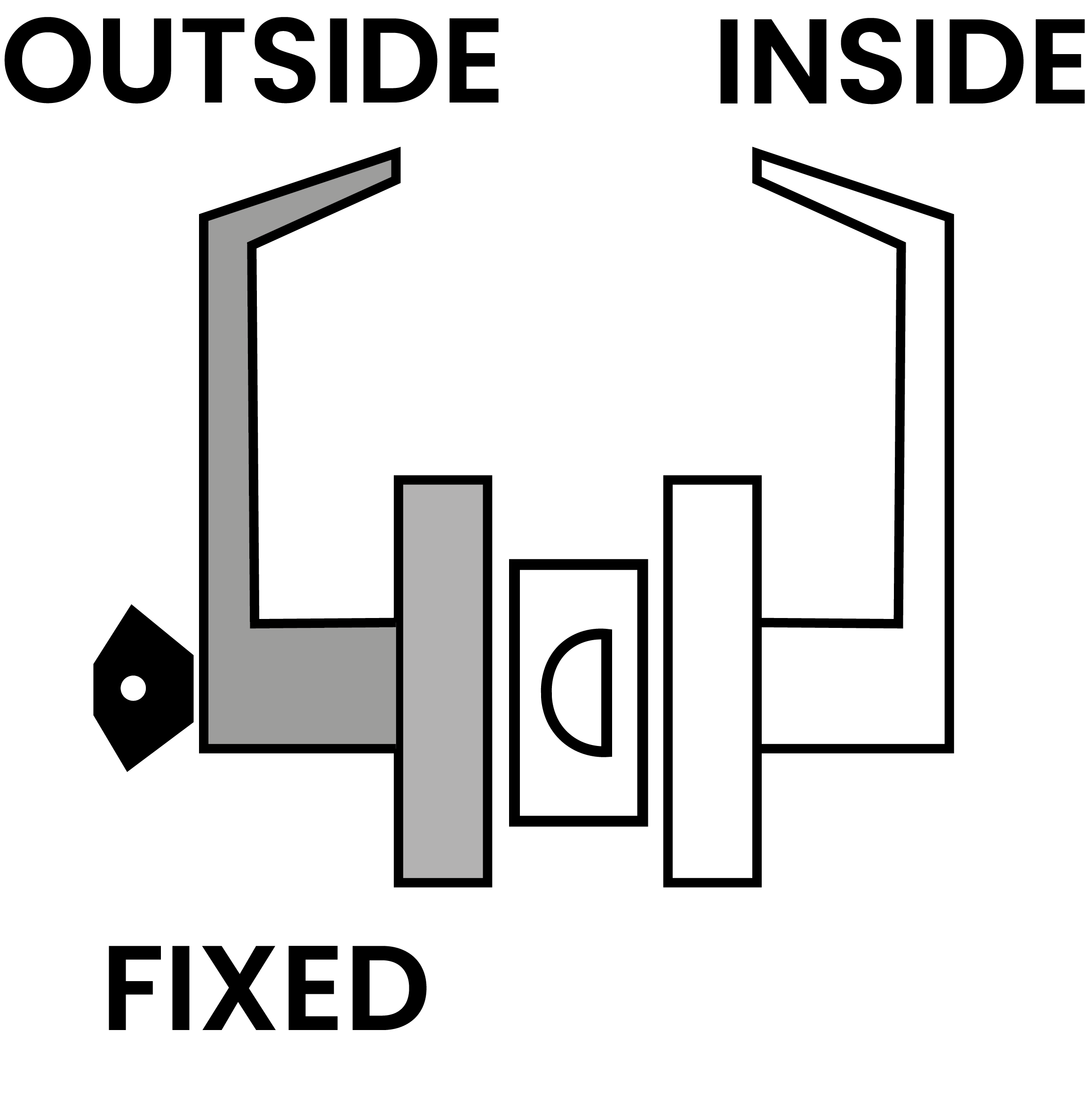

• Storeroom: Outside lever always locked; key required for entry; inside lever always free
