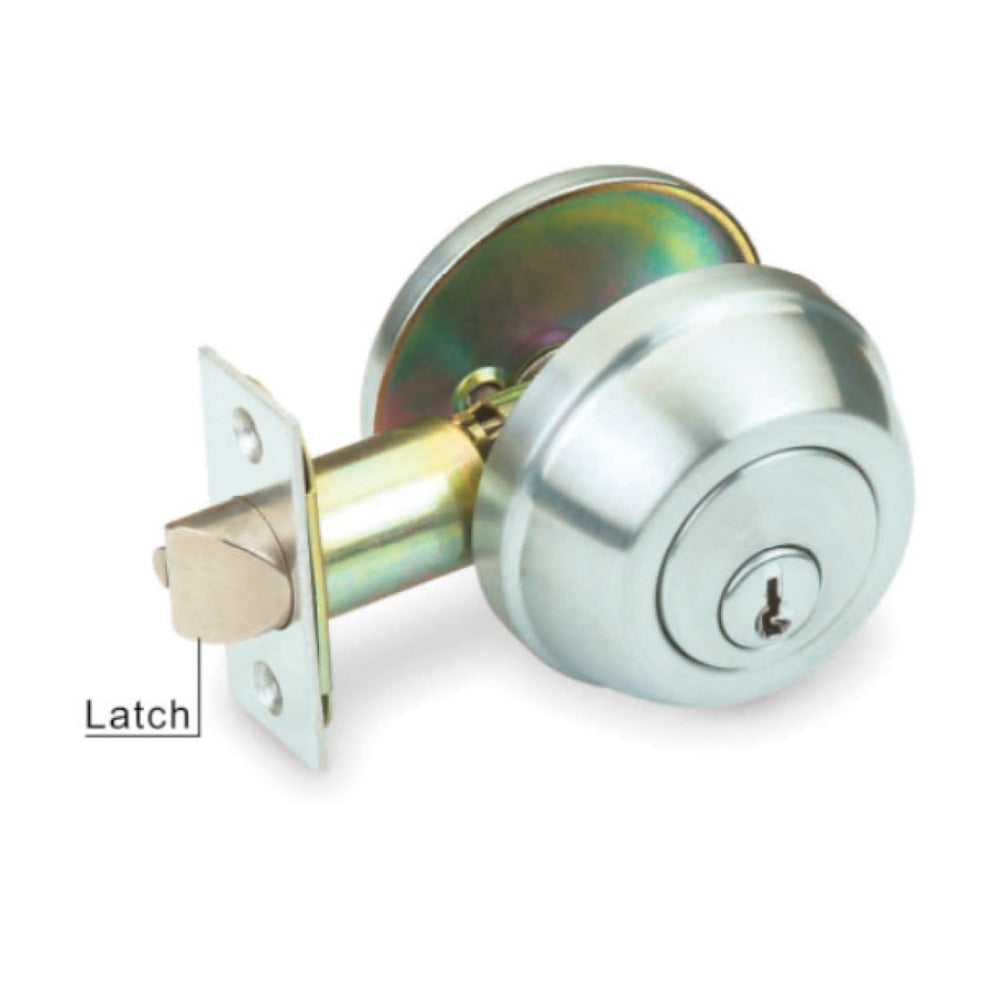

Series FDC151 Deadbolt – Heavy-Duty Commercial Door Security

Product Overview

The Series FDC151 Deadbolt delivers maximum protection and reliability for commercial, industrial, and institutional applications. This Grade 2 deadbolt is UL/ULC listed and available with a 3-hour fire rating, making it ideal for use on fire-rated doors where security and code compliance are critical.

Built for heavy-duty performance, the FDC151 features a 1" hardened steel-core deadbolt that resists kick-ins, sawing, and forced entry. The adjustable backset (2-⅜” or 2-¾”) ensures a precise fit, while the free-spinning anti-cut pin and reinforced strike plate with 3” screws significantly strengthen the door frame against attacks.

The solid brass 6-pin cylinder is pick-resistant, meeting ANSI Grade 2 security standards to prevent tampering and forced removal. Tested to exceed 400,000 operating cycles, this deadbolt offers long-lasting reliability.

Key Features

• ANSI Grade 2 deadbolt for superior commercial security

• UL/ULC listed, 3-hour fire-rated option for code compliance

• 1" hardened steel-core deadbolt for resistance against kick-ins and saw attacks

• Adjustable backset (2-⅜” or 2-¾”) for versatile installation

• Reinforced strike plate with 3” screws and anti-cut pin for frame strengthening

• Pick-resistant 6-pin solid brass cylinder for enhanced protection

• Accommodates wood or metal doors, 1-¾” thick

• PREP 161 door preparation

• Lifetime limited warranty for peace of mind

• Tested over 400,000 cycles for durability and consistent performance

Specifications

• Bore Diameter: 2-½” lock housing

• Backset: 2-⅜” or 2-¾” (adjustable)

• Strike Plate: 1⅛” x 2¾” square corner

• Door Thickness: 1-¾”

• Finish: Stainless Steel
