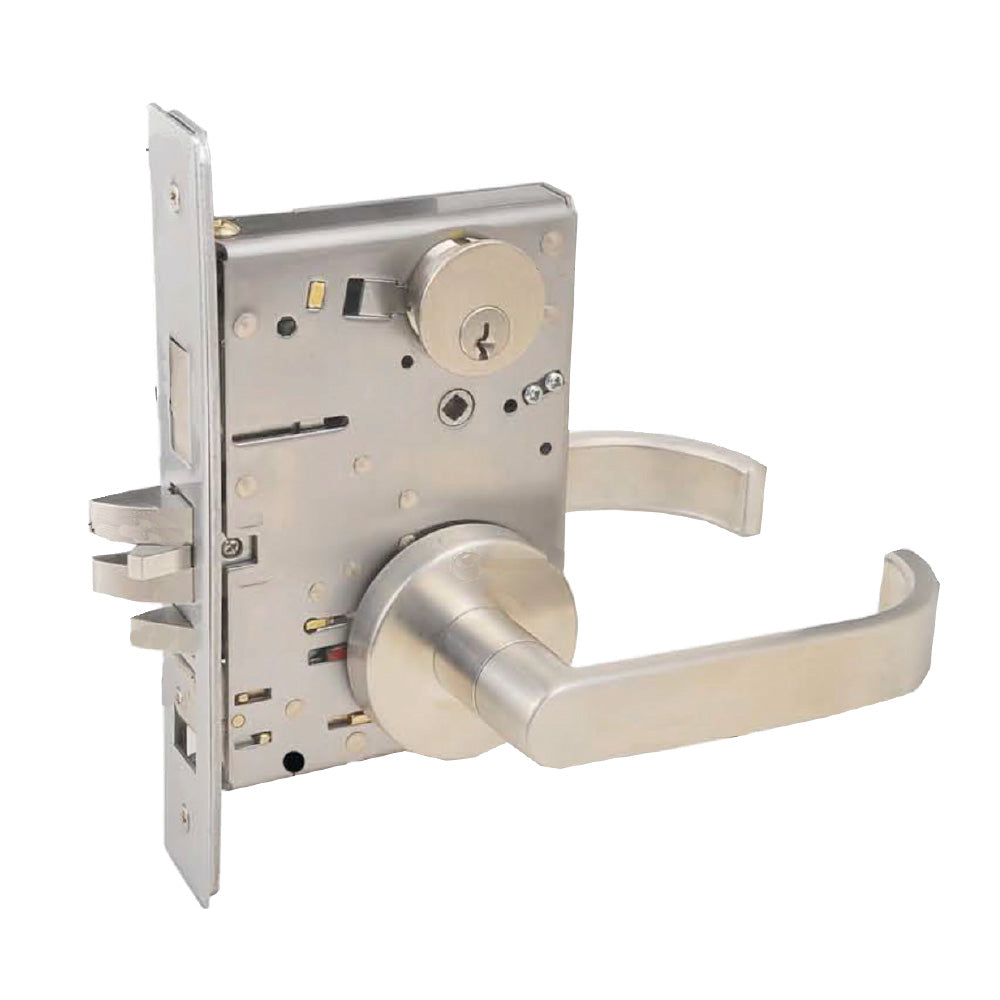

Series FDC701 / FDC704 / FDC707 Mortise Lock – Heavy-Duty & Secure Commercial Lockset

Product Overview

The Series FDC701 / FDC704 / FDC707 Mortise Lock is built for maximum security, durability, and reliable performance in commercial and institutional settings. Grade 1 certified and UL/ULC listed, this lockset is available with a 3-hour fire rating, making it ideal for use on fire-rated doors and in high-traffic environments.

Engineered for long-term use, this mortise lock features a 1" SUS304 stainless steel deadbolt, ¾" reversible anti-friction latch bolt, and a rocker switch that locks or unlocks the hub with ease. Tested to exceed 1,000,000 operating cycles, this lock delivers uncompromising reliability and smooth operation.

The 6-pin pick-resistant cylinder can be keyed and master keyed as required, providing enhanced security and flexibility for facility management.

Key Features

• Grade 1 mortise lockset for heavy-duty commercial applications

• UL/ULC listed and 3-hour fire-rated option for code compliance

• 1" stainless steel deadbolt and ¾" reversible latch bolt for superior security

• Anti-friction latch for smooth, quiet operation

• Pick-resistant 6-pin cylinder, keyed and master keyed as needed

• ASA standard strike plate (4⅞” x ¼”) included, curved strike available by request

• Compatible with wood or metal doors, 1-¾” thick

• Lifetime limited warranty for peace of mind

• Tested over 1,000,000 cycles for proven durability

Specifications

• Backset: 2-¾”

• Door Prep: PREP 86 Sectional

• Strike: ASA strike standard, brass, non-handed

• Finish: Stainless Steel

• Door Thickness: 1-¾”

Available Functions

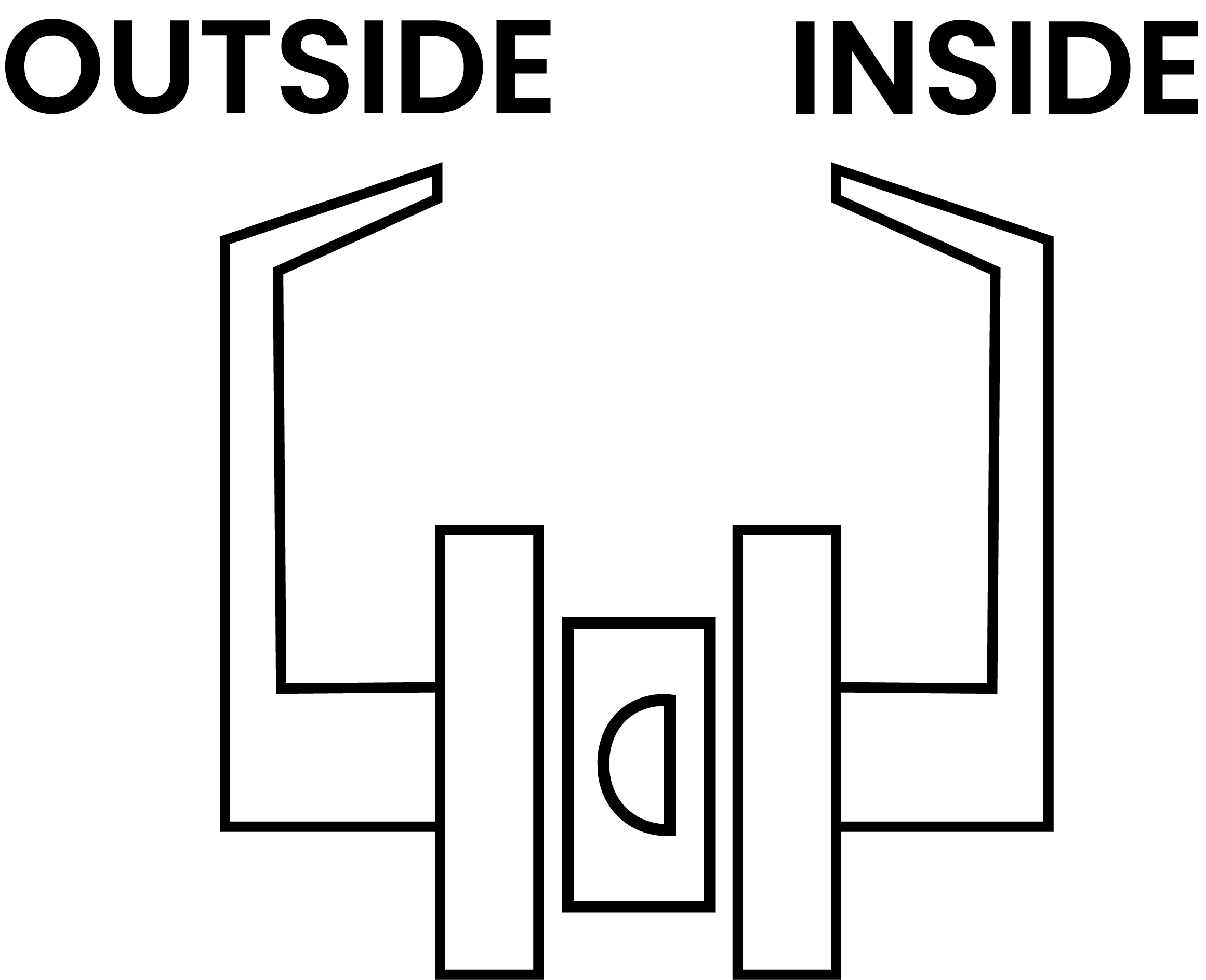

• Passage: For doors that do not require locking

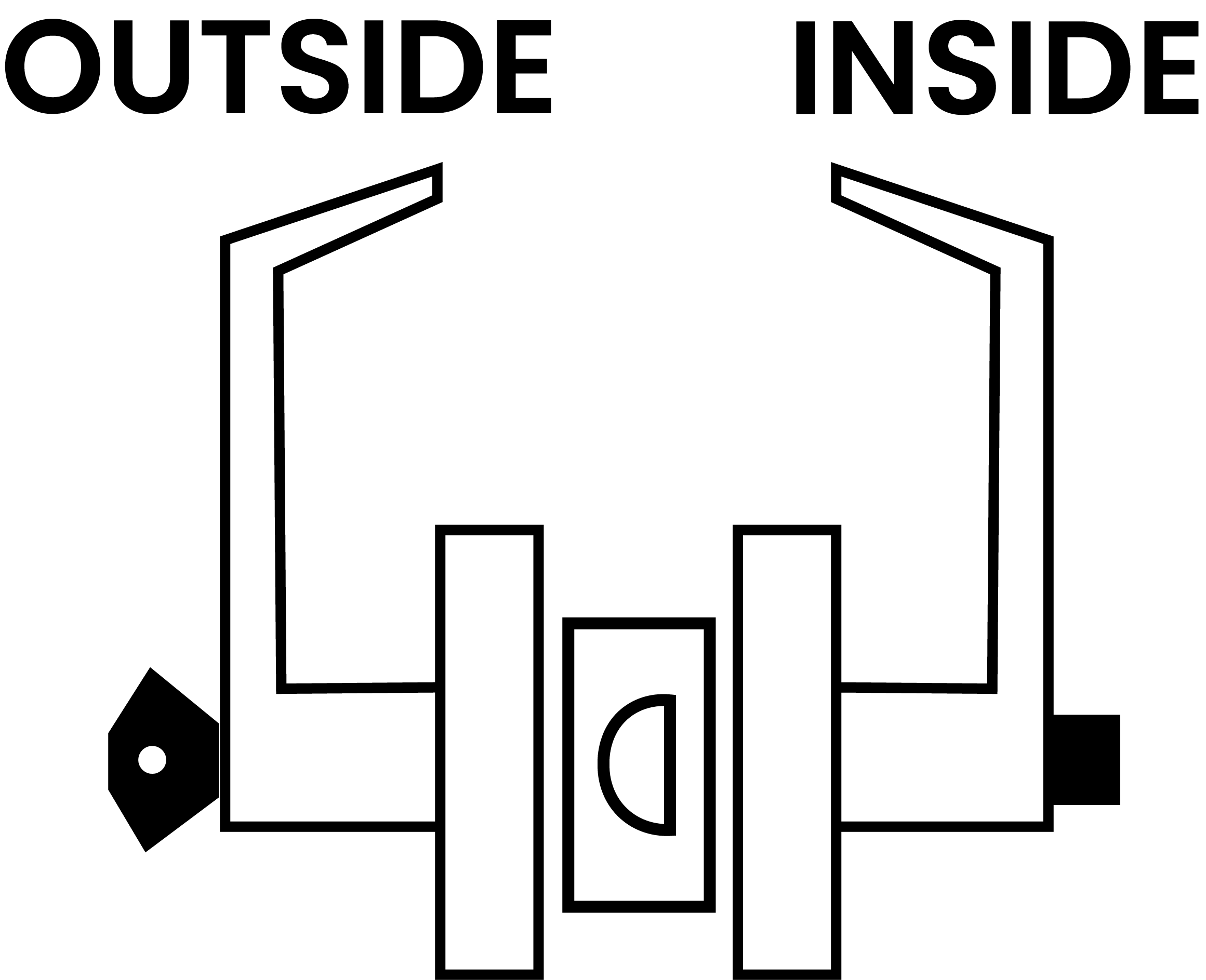

• Entrance: Operated by key from the outside, button from inside, with passage function

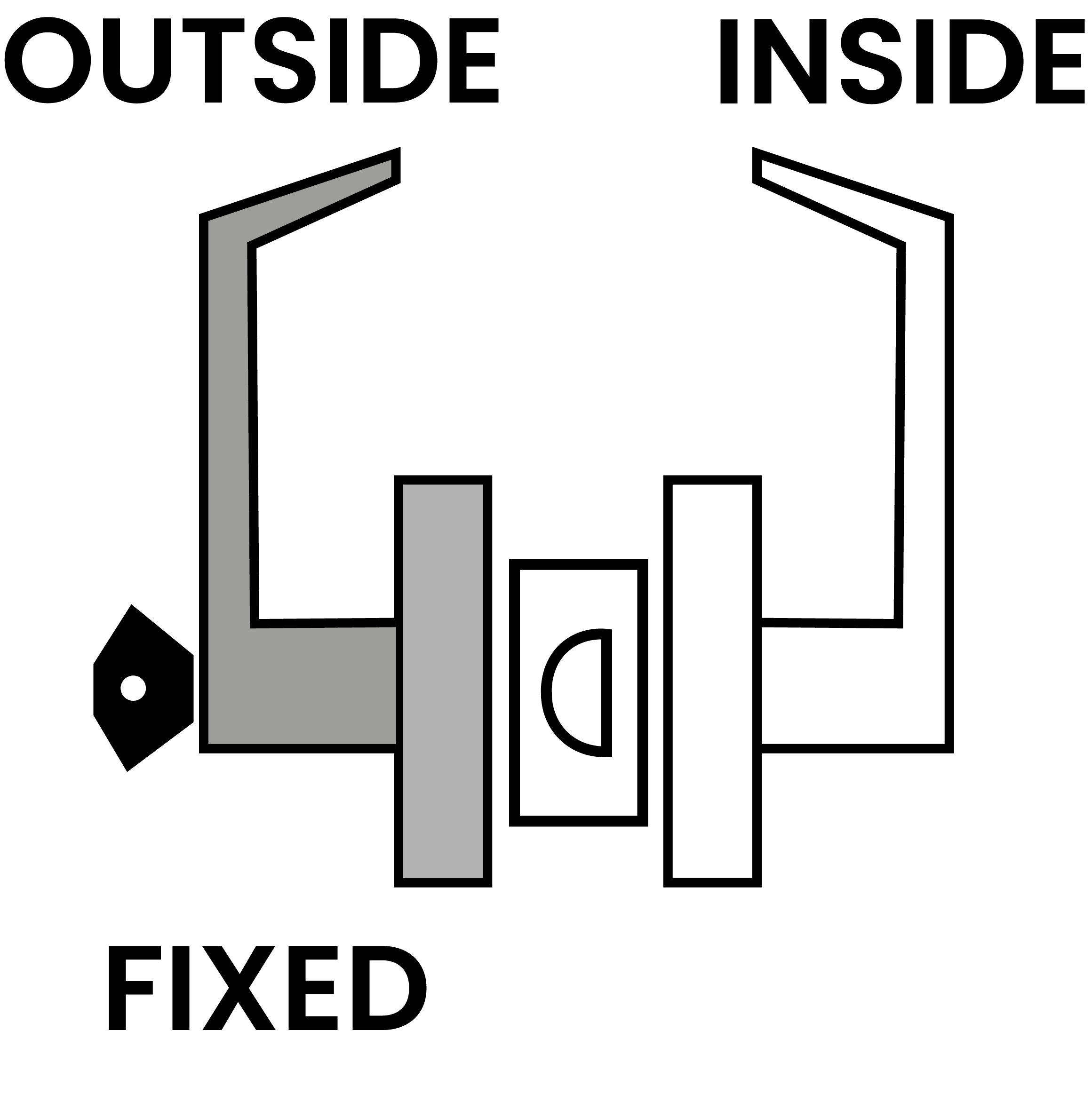

• Storeroom: Outside lever always locked; key required for entry; inside lever always free

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
